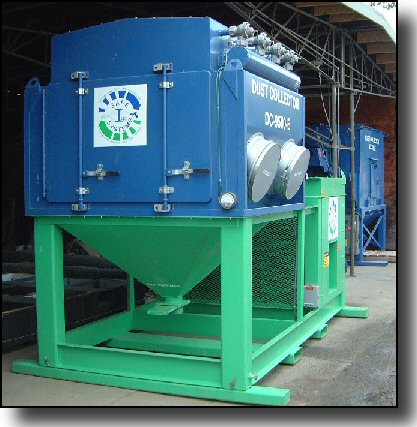

A compact, versatile dust collector, the SAFE Systems DC9,500E is powered by a belt-driven 30HP electric motor.
The fan and dust collector are rated at 9,500 cfm @17” WC. The fan is equipped with an outlet damper for regulating the airflow.
The skid-mounted 9500 cfm dust collector has both lifting eyes and forklift pockets for handling by either crane or forklift. The legs are extendable so a standard 55 gallon dust barrel can be placed under the slide gate for easy emptying.
The unit has (2) 18” diameter dust inlets on each of two sides to give the user greater versatility. Only two inlets are to be at a time.
The dust collector utilizes twelve (12) filter cartridges which are cleaned by an automatic pulsing system. 30cfm of compressed air is required for the pulsing system.
