Single Component Paint Systems

Call for what's in stock


The new maximum power series for heavy corrosion protection and maximum requirements, such as in the marine and offshore industry.

High-quality and robust WIWA pump technology with high and even extremely high pressure transmission rates and enormous volumetric capacities to meet highest demands.

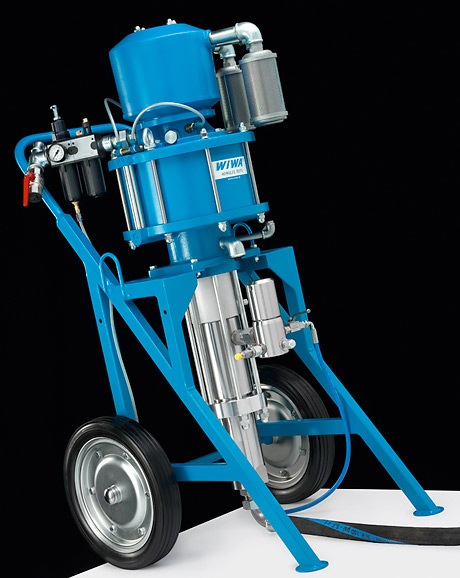

The new models 35075 and 35061 are maximum power units for large area and thick-film coatings. They have a very high pressure ratio and superior pumping capacities. Even the use of several spray guns and hose lengths from more than 100 m (without noticeable pressure drop) is no problem for this spraying equipment. This enables area output values and coating thicknesses, that had never been achieved before.

The new models 48057 and 48046 are units with higher pumping capacities in connection with a high pressure ratio.

With their enormous pumping rate of 550 ccm per double stroke, the models 60036 and 60028 are ideally suited for use in automatic and manual paint circulation and spray painting systems.

WIWA Thick-film/ Mortar-Pumps

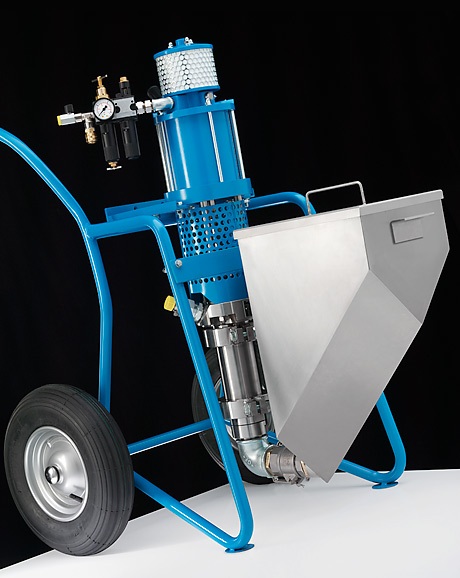

The WIWA series 410.09 and 600.12 is perfectly suitable for the application of epoxy and water based thick-film materials and mortars, such as cement mortar, cement-bound fire protection materials, cement slurry and filled vinyl esters.

WIWA thick-film pumps can be flushed and cleaned with diluting agents. The pump is therefore also first choice when it comes to the transfer of epoxy based materials.

Due to the use of quick release couplings the material pumps, which consist of only a few parts, can be quickly disassembled, cleaned and reassembled, which is highly beneficial with short processing times, which are quite common today.

The feed funnel can also be simply removed. With this quick maintenance the downtimes, especially in construction site applications, can be reduced considerably. These large capacity pumps are designed with extra large flow passages, and due to the slow pumping speed only suffer very low wear, even when transferring high amounts of material.
